Xinda Owl Double Pulley – xindasafety.com

A professional double pulley that makes rope movement as smooth as silk.

I. Product Overview

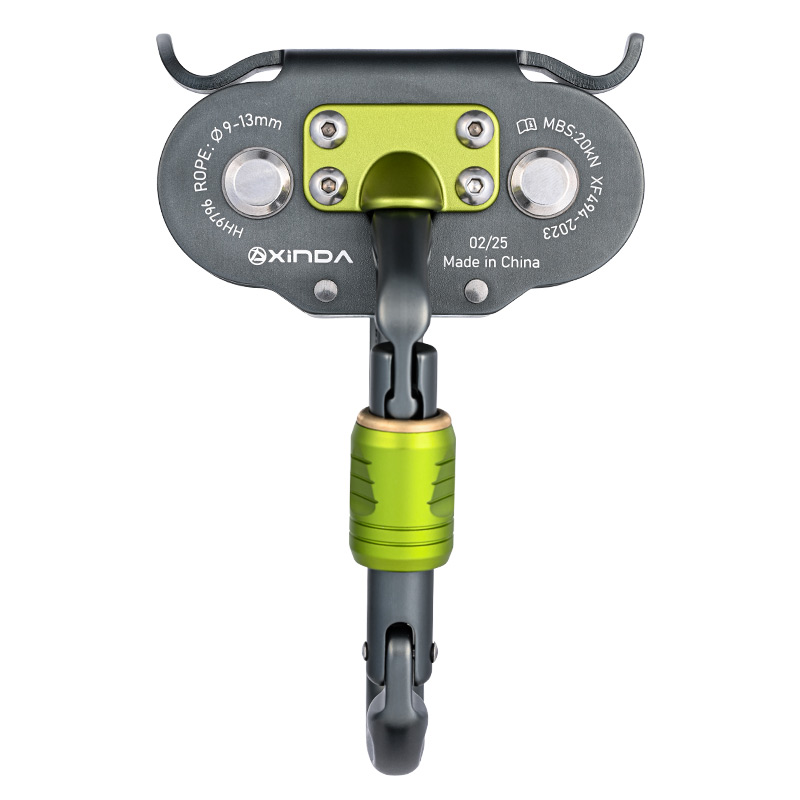

The Owl Double Pulley is a high-performance double pulley from Xinda‘s 3rd Generation H-Series (Item No.: HH-9796). It features a dual-sheave, dual-axle design with built-in ball bearings and precision-polished grooved sheaves for exceptionally smooth rope travel. With a 20kN breaking strength and XF 494-2023 certification, it is a reliable choice for mountaineering, caving, rescue, high-altitude work, and more.

II. Technical Specifications

Parameter	Value
Product Name	Owl Double Pulley
Brand	Xinda
Item No.	HH-9796
Material	Aluminum alloy, steel, etc.
Color	Green/Gray
Dimensions	145 × 80 × 96 mm
Gate Opening	26 mm
Weight	432 g
Applicable Rope Diameter	9–13 mm
Breaking Strength	20 kN
Standard	XF 494-2023
Packaging	Cardboard box
Application Scope	Mountaineering / Caving / Rock Climbing / Expansion Activities / Rescue / High-altitude Work / Outdoor Amusement Park Equipment, etc.

III. Key Design Features

3.1 Dual-Sheave, Dual-Axle Design – Extra Stability

The Owl Double Pulley uses a dual-sheave, dual-axle configuration with two sheaves arranged side by side:

Enhanced balance – Both sheaves share the load, providing smoother rope travel
Reduced rope twisting – Compared to single pulleys, the double design minimizes rope spin and tangling
More even load distribution – Forces are spread across two sheaves, extending service life

Whether you‘re hauling heavy loads or setting up a traverse system, the added stability of a double pulley is immediately noticeable.

3.2 Sealed Ball Bearings – Smooth and Efficient

The pulley is equipped with sealed ball bearings:

Lower friction – The bearing design allows the sheave to spin more freely
Higher mechanical efficiency – Better mechanical advantage, easier hauling
Longer service life – Bearings are wear-resistant and durable, staying smooth over time

Combined with precision-polished grooved sheaves, the rope glides through the pulley with exceptional smoothness.

3.3 Large Gate Opening – Fast Rope Installation

The Owl Double Pulley features an asymmetric auto-locking gate:

Feature	Description
26mm gate opening	Accommodates a wide range of carabiners and connectors
Auto-locking	Gate locks automatically when closed – reduces accidental opening
Smooth and convenient	One-handed operation, fast rope installation

The auto-locking gate is especially useful in challenging environments — no need to worry about forgetting to lock the gate manually.

3.4 Integrated Carabiner + Dust Covers

The Owl Double Pulley comes with thoughtful design details:

Carabiner pre-installed – No need to buy and attach a separate carabiner; ready to use out of the box
Front and rear dust covers – Secure the carabiner to prevent rattling and keep dust out of the bearings
Covers also stabilize the carabiner – Prevents side-to-side movement during use

These small details are very practical in dusty environments like caves or construction sites, helping extend the life of the equipment.

3.5 Compatible with Multiple Rope Types

Rope Type	Compatibility
Steel cable	✅ Compatible
Synthetic fiber rope	✅ Compatible
Nylon rope	✅ Compatible (9–13mm)

The Owl Double Pulley is specially designed to work with both steel cables and fiber ropes — a feature not commonly found in double pulleys. Whether you’re using dynamic climbing ropes or steel cables for industrial applications, it‘s ready to go.

IV. Product Advantages Summary

Advantage	Description
Dual-sheave, dual-axle	Enhanced balance, smoother rope travel
Ball bearings	Low friction, high efficiency, long life
20kN breaking strength	High strength, safe and reliable
26mm large gate opening	Fast rope installation, broad compatibility
Auto-locking gate	Closes and locks automatically – prevents accidental opening
Integrated carabiner + dust covers	No rattling, keeps dust out
Steel cable / fiber rope compatible	One pulley, multiple applications

V. Application Scenarios

Scenario	Specific Use
Mountaineering / Rock Climbing	Rope redirection, mechanical advantage systems
Caving	Traverse systems, rope protection
Rescue	Haul systems, deviation anchors
High-altitude work	Tool hauling, rope management
Outdoor amusement parks	Ziplines, via ferrata — pulley components
Industrial rope access	Guide pulleys for steel cable systems

VI. Usage Guidelines

Check rope diameter — Ensure rope diameter is within 9–13mm before use
Confirm gate is locked — After installing the rope, make sure the auto-lock gate is fully closed
Do not overload — Do not exceed the 20kN breaking strength
Regular inspection — Check sheave rotation, bearing noise, and gate function periodically
Cleaning and care — Remove dust after use; keep dust covers closed when not in use
Steel cable use — After using steel cable, inspect sheave grooves for unusual wear

VII. Who Is It For?

Rope access enthusiasts — Redirection and haul components in SRT/DRT systems
Rescue professionals — Pulley systems in rope rescue
Cavers — Traverse systems and rope protection
Climbers / mountaineers — Rope management in traditional climbing
High-altitude workers — Tool hauling and rope redirection
Amusement park maintenance — Inspection and replacement of zipline / via ferrata pulleys

VIII. Conclusion

The Xinda Owl Double Pulley is a professional double pulley that takes “smooth and stable” to the next level.

Dual-sheave, dual-axle design → Balanced and stable
Sealed ball bearings → Smooth and efficient
Large auto-locking gate → Fast and safe
Steel cable & fiber rope compatible → Versatile
20kN breaking strength → Strong and reliable

Whether you‘re rigging a rope traverse or need a mechanical advantage system for heavy hauling, the Owl Double Pulley is a trustworthy addition to your gear kit.
