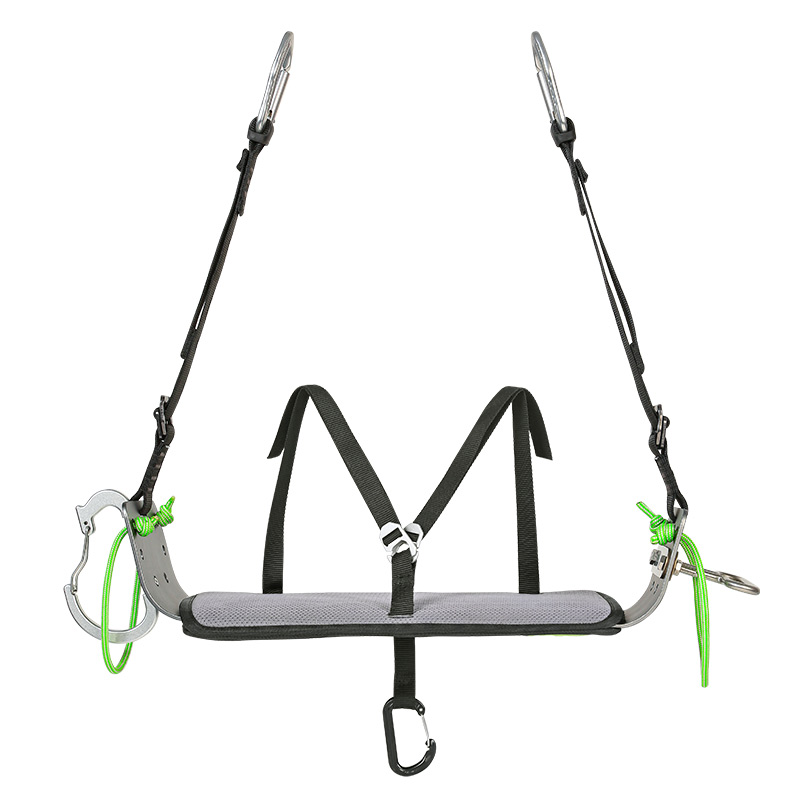

Xinda 3rd Generation H-Series Modular Multi-Functional Work Seat Board

A comfortable choice for high-altitude work — making suspended operations easier and more efficient

I. Product Overview

In high-altitude work, long periods of suspension are a real test of physical strength and endurance. Whether it‘s exterior wall cleaning, air conditioner installation, or rope access work, continuous pressure on the waist and thighs can quickly lead to fatigue.

The Xinda 3rd Generation H-Series Modular Multi-Functional Work Seat Board is designed to solve this problem. With 1,530g lightweight design, 100kg load capacity, and modular design, it makes high-altitude work more comfortable, safer, and more efficient.

II. Technical Specifications

Parameter	Value
Product Name	Modular Multi-Functional Work Seat Board
Brand	Xinda
Item No.	HH-ZB04
Material	Polyester, Aluminum Alloy, XPE, etc.
Color	Green/Gray
Aluminum Plate Thickness	4 mm
Dimensions	50 × 18 × 12 cm
Weight	1,530 g
Working Load Limit	100 kg
Webbing Width	34 mm
Included Carabiner Load	22 kN
Application Scope	High-altitude work

III. Key Design Features

3.1 4mm Thick Aluminum Seat Board – Lightweight and Strong

The seat board is made of 4mm thick aluminum alloy:

High strength, reliable load capacity
Lightweight for easy carrying
Raised side edges for added safety

At just 1,530g (about 3.4 lbs), it adds minimal weight to your harness.

3.2 Modular Design – Customize with Accessories

The biggest highlight of the H-Series seat board is its modular design. Accessories can be freely added as needed:

Accessory	Function
Gear rack	Increases equipment carrying capacity
Rope winding handle	Easy rope management
Gear attachment strap	Hang tools and small equipment

Official description: “Accessories can be freely added as needed — increases equipment carrying capacity, hands-free when suspended in the air.”

Both sides of the seat board feature multi-functional attachment slots for flexible installation of various accessories to meet different work scenarios.

3.3 Ergonomic Design – Comfortable to Wear

Breathable mesh cushion – Comfortable and breathable, no stuffiness during long sitting sessions
Raised side edges – Prevents side slipping, improves safety
Removable cushion – Easy to clean and maintain

“Except for the seat board, other equipment shown is for display purposes only and can be purchased separately from our store.”

3.4 Attention to Details – Durable and Practical

Detail Feature	Function
Rubber fixing ring	Protects webbing, reduces wear
Alloy adjustment buckle	Smooth adjustment of webbing length
16kN quick link	Small quick link at the bottom for fast harness connection
Webbing protection sleeve	Protects the connection point between webbing and seat board, reduces friction
Two carabiners included	22kN load capacity, included with the board (random style)

These details show thoughtful consideration for real-world use — every wear point is protected, and every connection is reinforced.

3.5 Easy to Use – No Need to Remove When Standing

“Designed for harness suspension work. The seat board cannot be used alone. When you stand up, the seat board can remain behind you without needing to be removed.”

This is a very practical design:

When sitting – the seat board supports your weight
When standing – simply stand up; the seat board naturally hangs behind you
No need to repeatedly attach and detach — improves work efficiency

3.6 High Strength Load Capacity – Safe and Reliable

Parameter	Value	Explanation
Working Load Limit	100 kg	Covers most users + tools
Included Carabiner Load	22 kN	Approx. 2,200 kg — ample safety margin

A 100kg working load limit covers the weight of most adult users plus their tools. The included carabiners with 22kN load capacity ensure safe connection points.

IV. Technical Summary

Parameter	Value
Model No.	HH-ZB04
Material	Polyester, Aluminum Alloy, XPE, etc.
Aluminum Plate Thickness	4 mm
Dimensions	50 × 18 × 12 cm
Weight	1,530 g
Working Load Limit	100 kg
Webbing Width	34 mm
Included Carabiner Load	22 kN
Application Scope	High-altitude work

V. Application Scenarios

Scenario	Description
High-rise window cleaning	Spider-man style work — long hours suspended; seat board reduces waist and leg fatigue
Air conditioner installation	Outdoor unit installation — long hours hanging outside windows
Rope access work	Sitting work position after ascending with SRT
Caving	Long-hour suspended work in caves
Rescue operations	Comfortable sitting position for rescuers on ropes
High-altitude inspections	Wind turbines, power lines, bridges, and other high-altitude structures

VI. Product Advantages Summary

Advantage	Description
Lightweight	1,530g — easy to carry
4mm thick aluminum seat board	Strong and durable with raised side edges
Modular design	Freely add accessories — increases gear carrying capacity
Breathable cushion	No stuffiness during long sitting; removable and washable
No need to remove when standing	Seat board naturally hangs behind you when standing up
Multiple wear-protection details	Rubber fixing rings and webbing sleeves reduce wear
100kg load capacity	Covers most users + tools
Carabiners included	22kN load capacity — safe and reliable

VII. Usage Guidelines

Cannot be used alone – Must be used with a certified harness
Load limit – Working load limit is 100kg; do not exceed
When standing – Simply stand up; the seat board will naturally hang behind you without needing to be removed
Regular inspection – Check webbing for wear, seat board for cracks, and connectors for damage
Cleaning – Cushion is removable and washable; wipe aluminum board with a damp cloth
Accessories – Additional accessories (gear rack, rope handle, etc.) available for purchase as needed

VIII. Who Is It For?

High-rise window cleaners – Essential for long-hour suspended work
Air conditioner installers – Improves comfort during outdoor unit installation
Rope access technicians – Sitting work position after SRT ascending
Caving enthusiasts – Long-hour suspended work in caves
Rescue professionals – Comfortable sitting position during rope rescue
Wind turbine / power line technicians – Sitting work position inside towers
High-altitude inspectors – Bridge, chimney, and other structure inspections

IX. Conclusion

The Xinda 3rd Generation H-Series Modular Multi-Functional Work Seat Board is a product truly designed based on the actual needs of high-altitude workers.

Lightweight → 1,530g — easy to carry with no extra burden
Modular → Freely add accessories — expand as needed
Breathable cushion → No stuffiness during long sitting — removable and washable
No need to remove when standing → Switch freely between sitting and standing
100kg load capacity → Covers most users + tools
Multiple wear-protection details — Reduces wear, extends product life

For those who work long hours suspended on ropes — the “spider-men” of high-altitude work — a good seat board brings not only comfort but also improved work efficiency and safety.
